RAPID DELIVERY
-SPEED, RELIABILITY & PERFORMANCE
In an industry where every moment counts, we've revolutionized delivery times without compromising on quality. While most heat exchangers take 2–3 months to build, our new line of SA frames slash turnaround times in half to keep your production lines moving. That means you can get a sanitary plate heat exchanger you can depend on, with the same level of customization you need and expect, in just 6 weeks.
Our mix-and-match process makes ordering fast and easy:
1. Pick a frame based on your port requirements
2. Choose your equipment's size and capacity
3. Select your leg height
We'll take it from there.

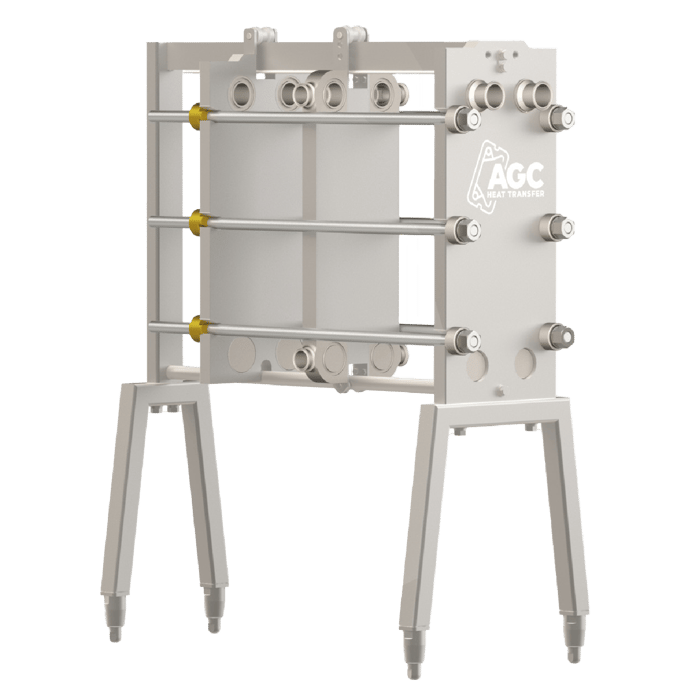

PRO2-SA Plate Heat Exchanger Frame
- Plate Capacity: 0.16 US Gallons / 0.61 l
- Heat Transfer Area: 1.87 ft2 / 0.17 m2
- Frame Connections: 2 1/2” Sanitary Clamp
- Terminal Connections: 2” Sanitary Clamp
- Terminal Weight: 95 lbs / 43 kg
- Frame Weight: 701–803 lbs / 318–364 kg
- Plate & Gasket Weight 316 SS: 3.5 lbs / 1.59 kg
- Plate & Gasket Weight Alloy C-276: 3.2 lbs / 1.45 kg

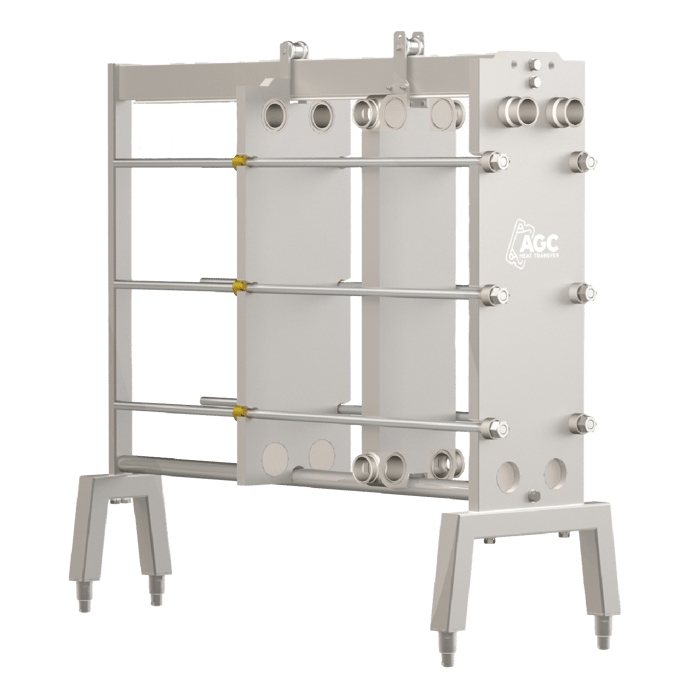

PRO5-SA Plate Heat Exchanger Frame
- Plate Capacity: 0.72 US Gallons / 2.72 l 0.45 US Gallons / 1.70 l
- Heat Transfer Area: 5.6 ft2 / 0.52 m2 / 5.6 ft2 / 0.48 m2
- Frame Connections: 4” Sanitary Clamp
- Terminal Connections: 4” Sanitary Clamp
- Terminal Weight: 390 lbs / 177 kg
- Frame Weight: 2,140–2,520 lbs / 973–1,146 kg

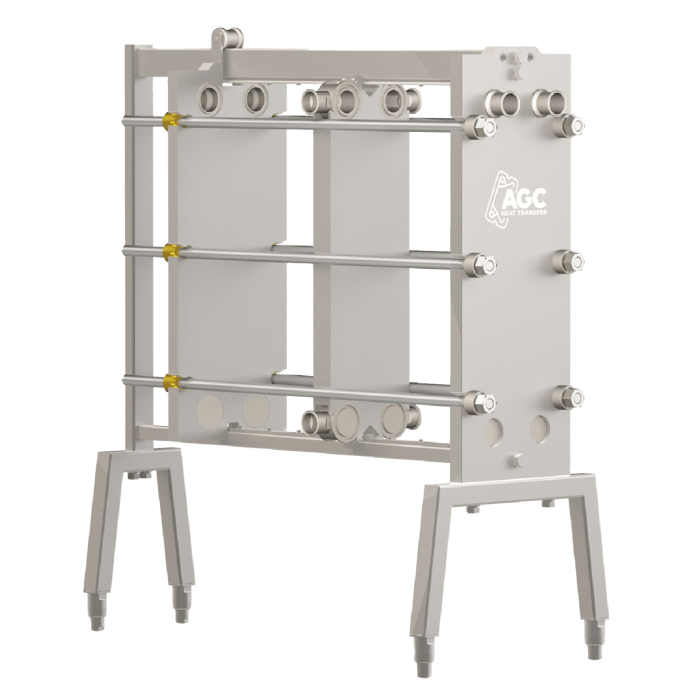

PRO8-SA Plate Heat Exchanger Frame
- Plate Capacity: 0.38 US Gallons / 1.44 l
- Heat Transfer Area: 4.1 ft2 / 0.38 m2
- Frame Connections: 3” Sanitary Clamp
- Terminal Connections: 3” Sanitary Clamp
- Terminal Weight: 220 lbs / 100 kg
- Frame Weight: 1,530–1,730 lbs / 695–786 kg

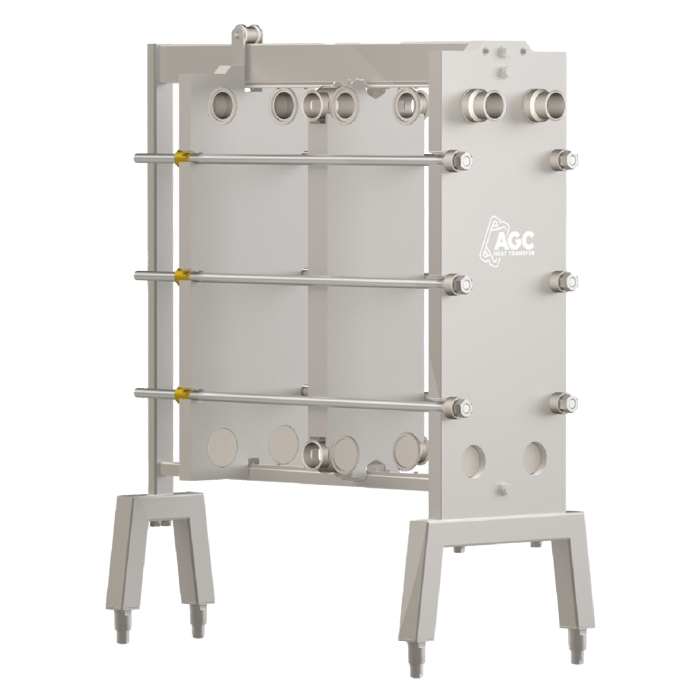

PRO10-SA Plate Heat Exchanger Frame
- Plate Capacity: 0.64 US Gallons / 2.42 l
- Heat Transfer Area: 6.7 ft² / 0.62 m²
- Frame Connections: 4” Sanitary Clamp
- Terminal Connections: 4” Sanitary Clamp
- Terminal Weight: 350 lbs / 159 kg
- Frame Weight: 2,841–3,152 lbs / 1,289–1,430 kg
